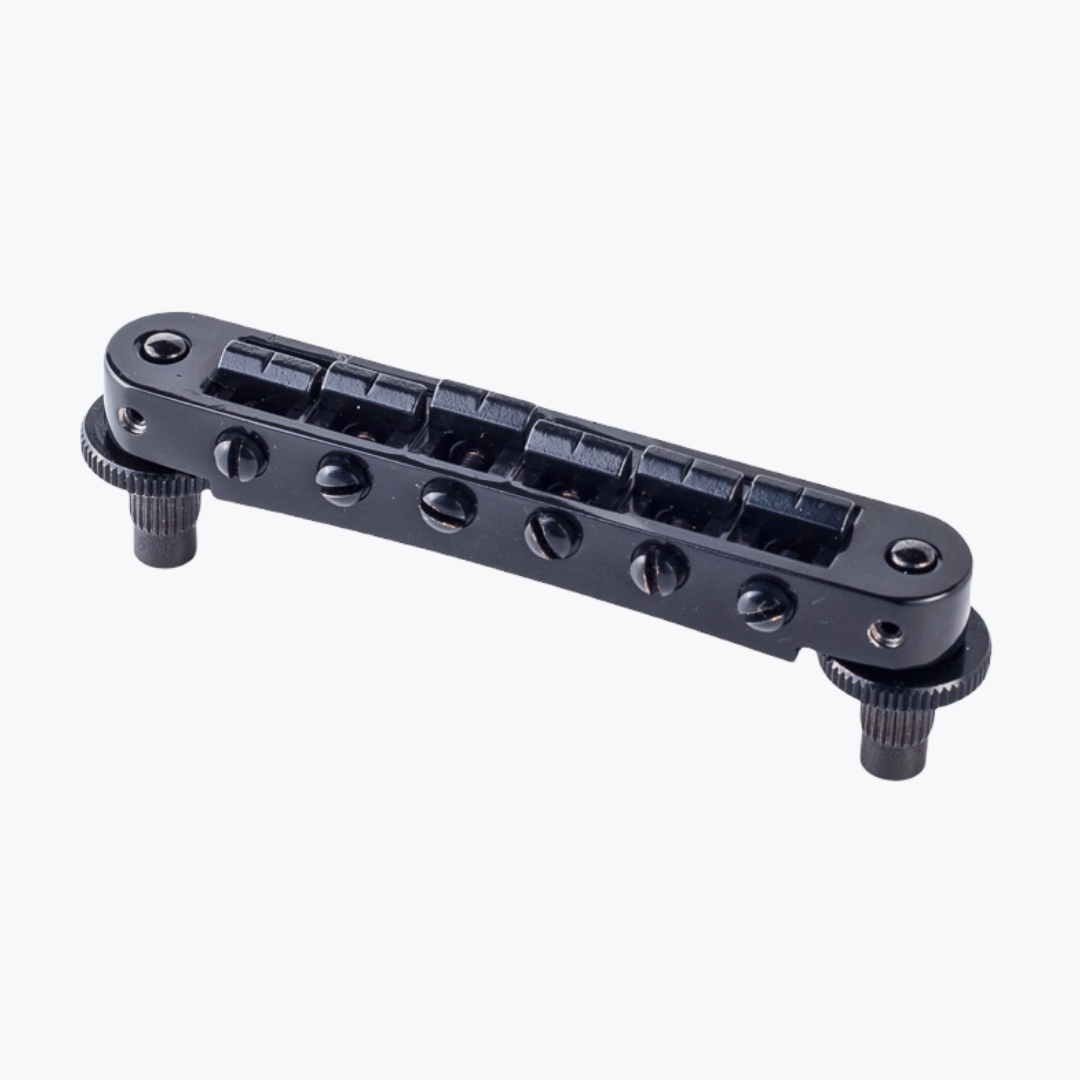

TonePros TP6 Tunematic Bridge

SKU GB-0543-003
COLOR: Black

The TonePros TP6 is a locking version of the Nashville type standard small post and threaded insert as found standard on current USA Gibson Les Paul GT and Gibson SG GT models. (Same format as LP Standard & LP Custom). This bridge has un-notched saddles for professional installation. It can be fit with many standard sized Piezo, aftermarket graphite, or exotic saddle materials. Direct retrofit for most USA guitars without modification.


  • Thread: 10/32 (as used by Gibson on Nashville Models)
  • Post to Post Spacing: 2.93 inches/
  • Saddle Notch: Un-Notched Saddles
  • Saddle Material: Zamak
  • Bridge Material: Zamak
  • Post/Thumbwheel Material: Brass
  • Radius: 12 inch
  • Post Top Width: .15 Inches/ 4mm

    ***TonePros products can not be shipped outside the US or Canada. Visit to find a dealer in your country.
