TonePros LPS02 Nashville Bridge and Tailpiece Set

SKU GB-0544-001
COLOR: Nickel

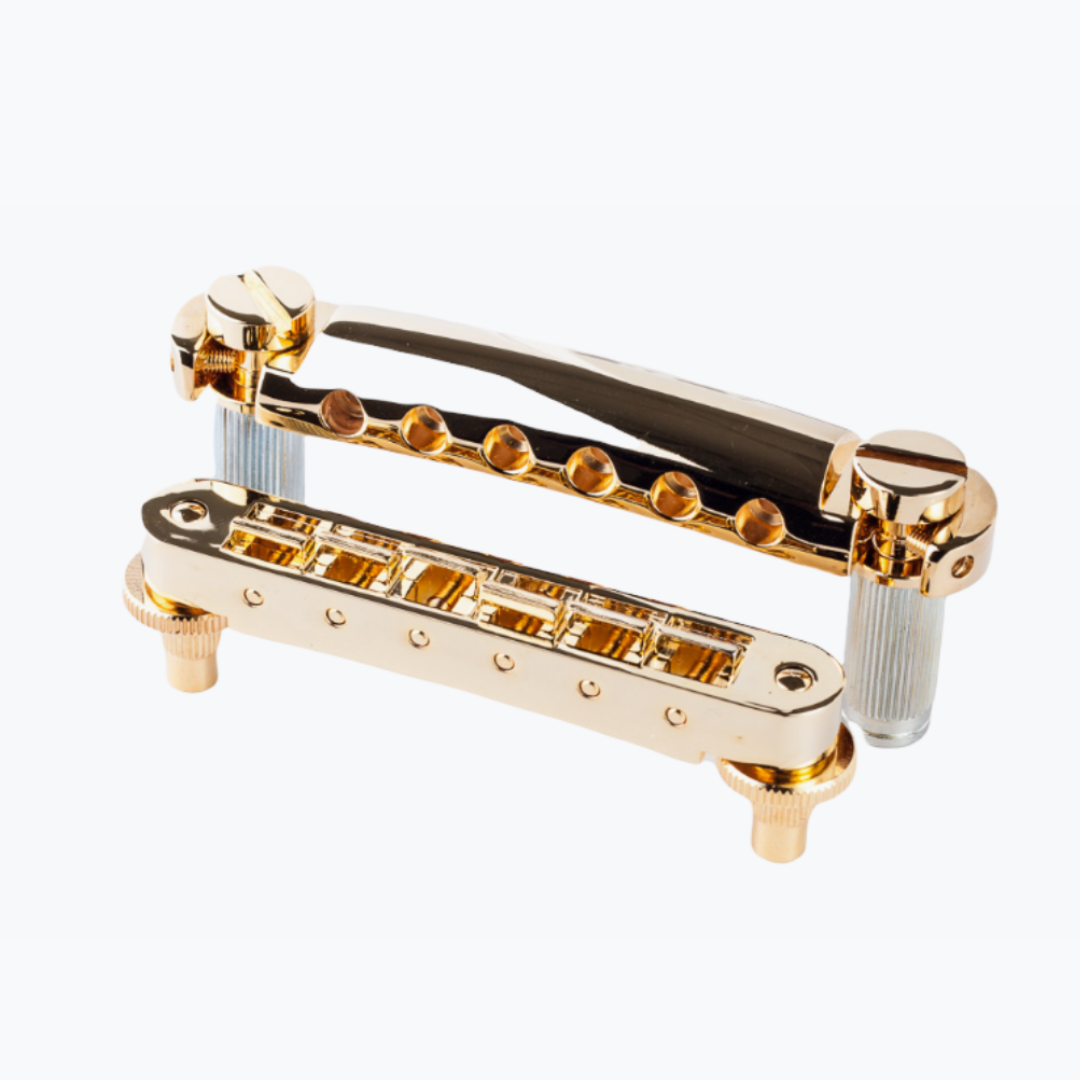

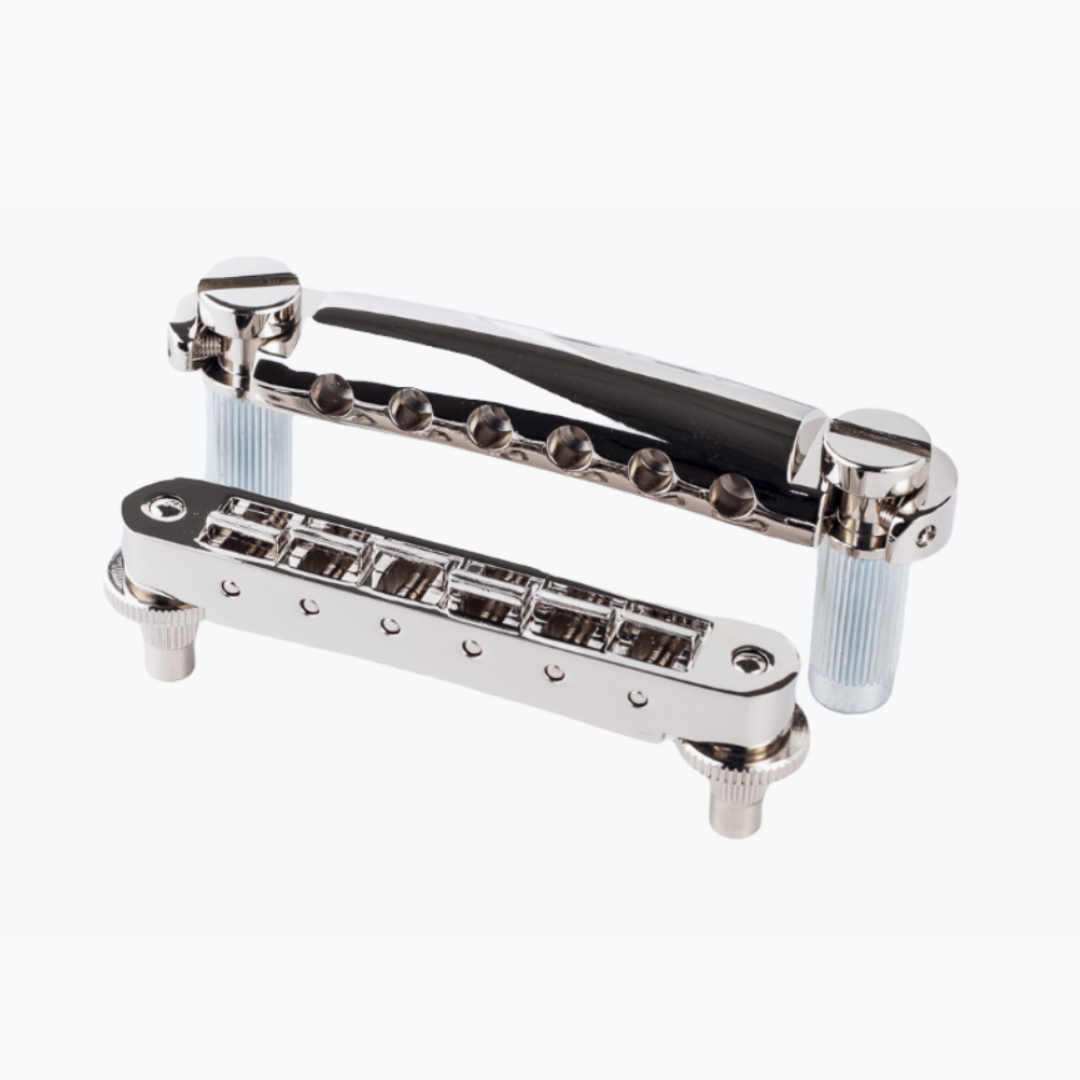

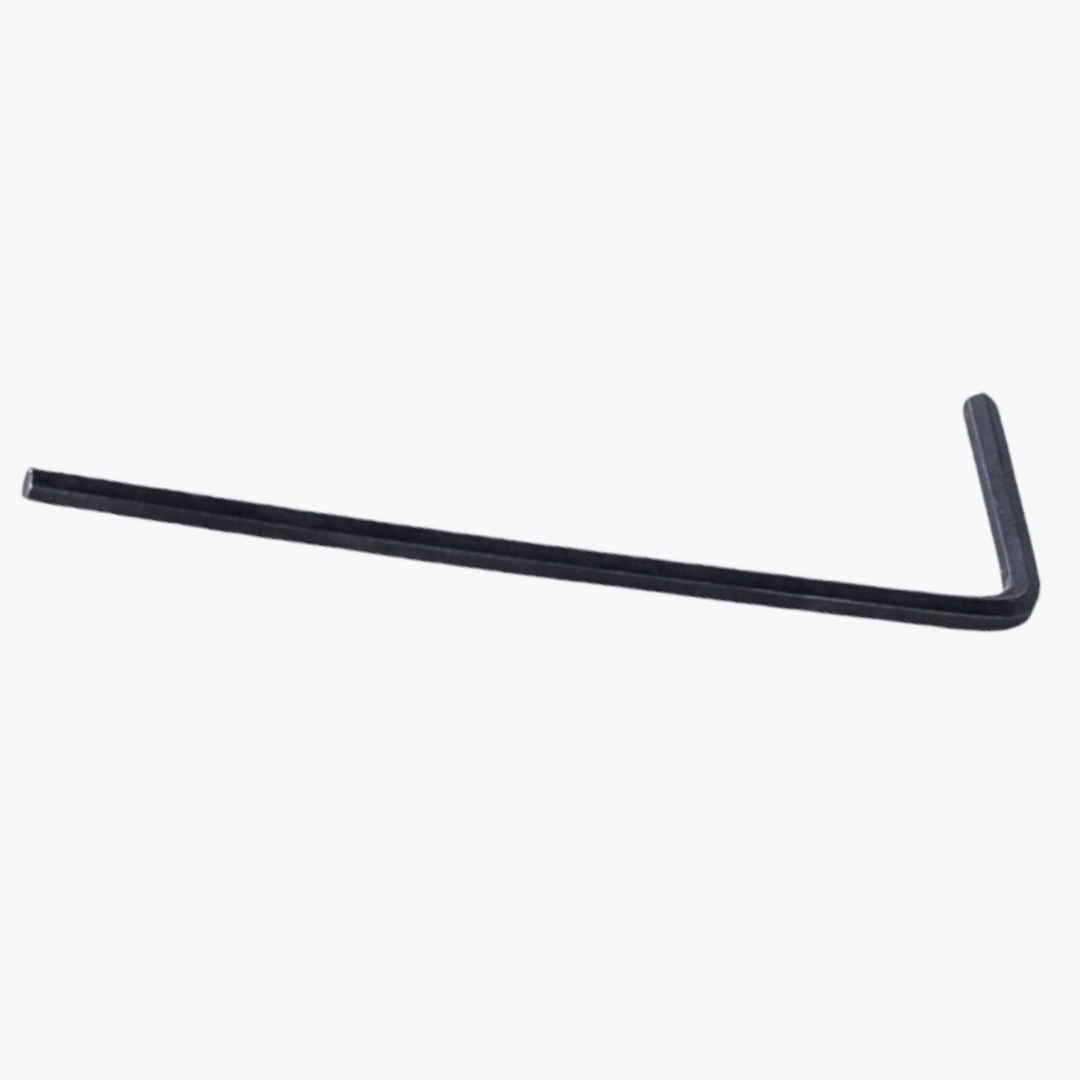

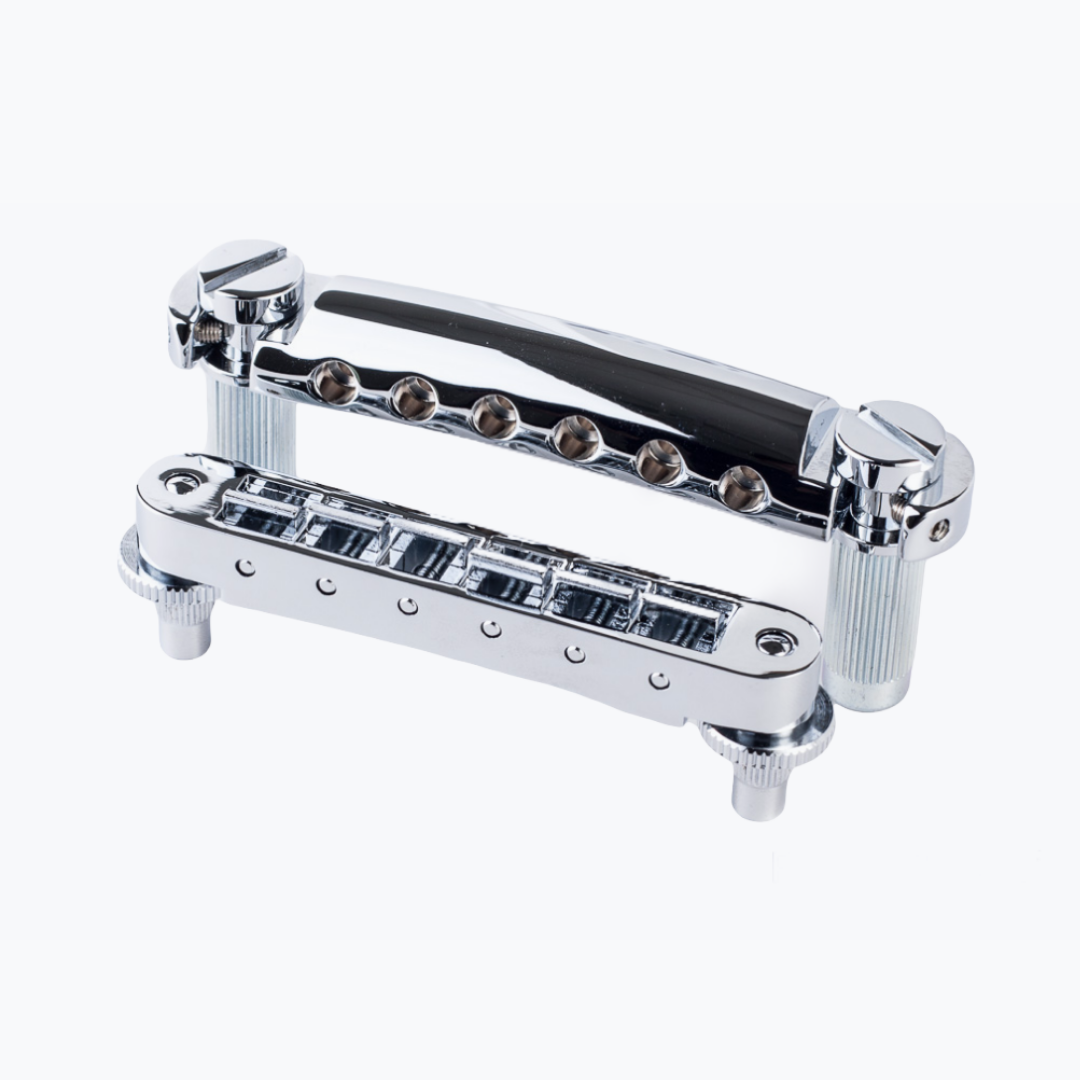

The TonePros System II Bridge and Tailpiece components come as a package set, ready to install on your guitar. The package includes: 1. TonePros Patent Issued System II Bridge with matching threaded adjustment posts. 2. TonePros Patent Issued System II Tailpiece with matching threaded adjustment studs. 3. Allen style adjustment tool for use with both bridge and tailpiece. The LPS02 includes the TonePros TP6 Bridge and T1ZS Tailpiece. These matched bridge and tailpiece are Standard thread and fit most USA guitars without modification.

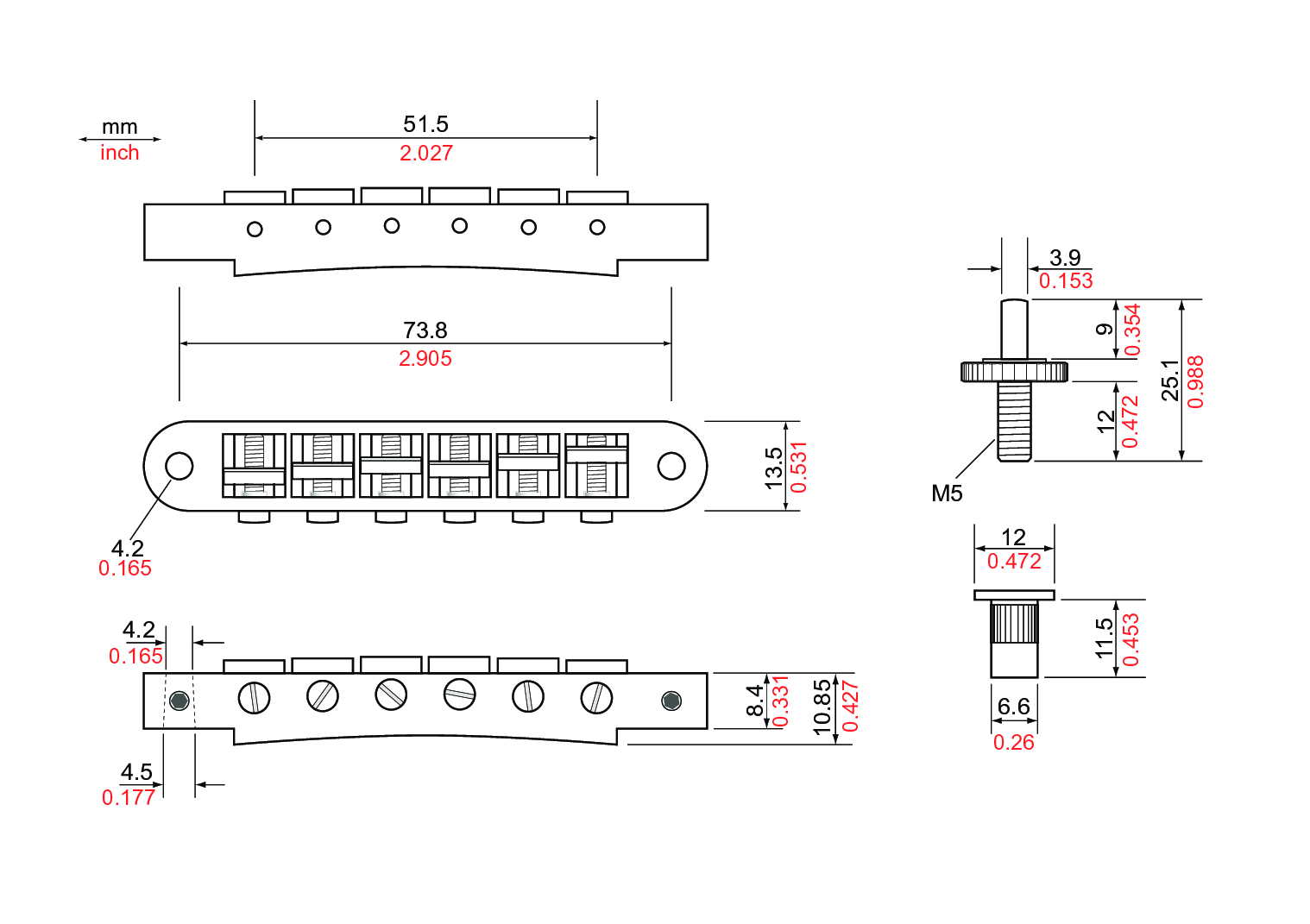

  • Bridge Post Thread: 5mm Metric (as used by Gibson on Nashville Models)
  • Bridge Post to Post Spacing: 2.93 inches/ 74.5mm
  • Saddle Notch: Un-Notched Saddles
  • Saddle Material: Zamak
  • Bridge Material: Zamak
  • Bridge Post/Thumbwheel Material: Brass
  • Radius: 12 inch

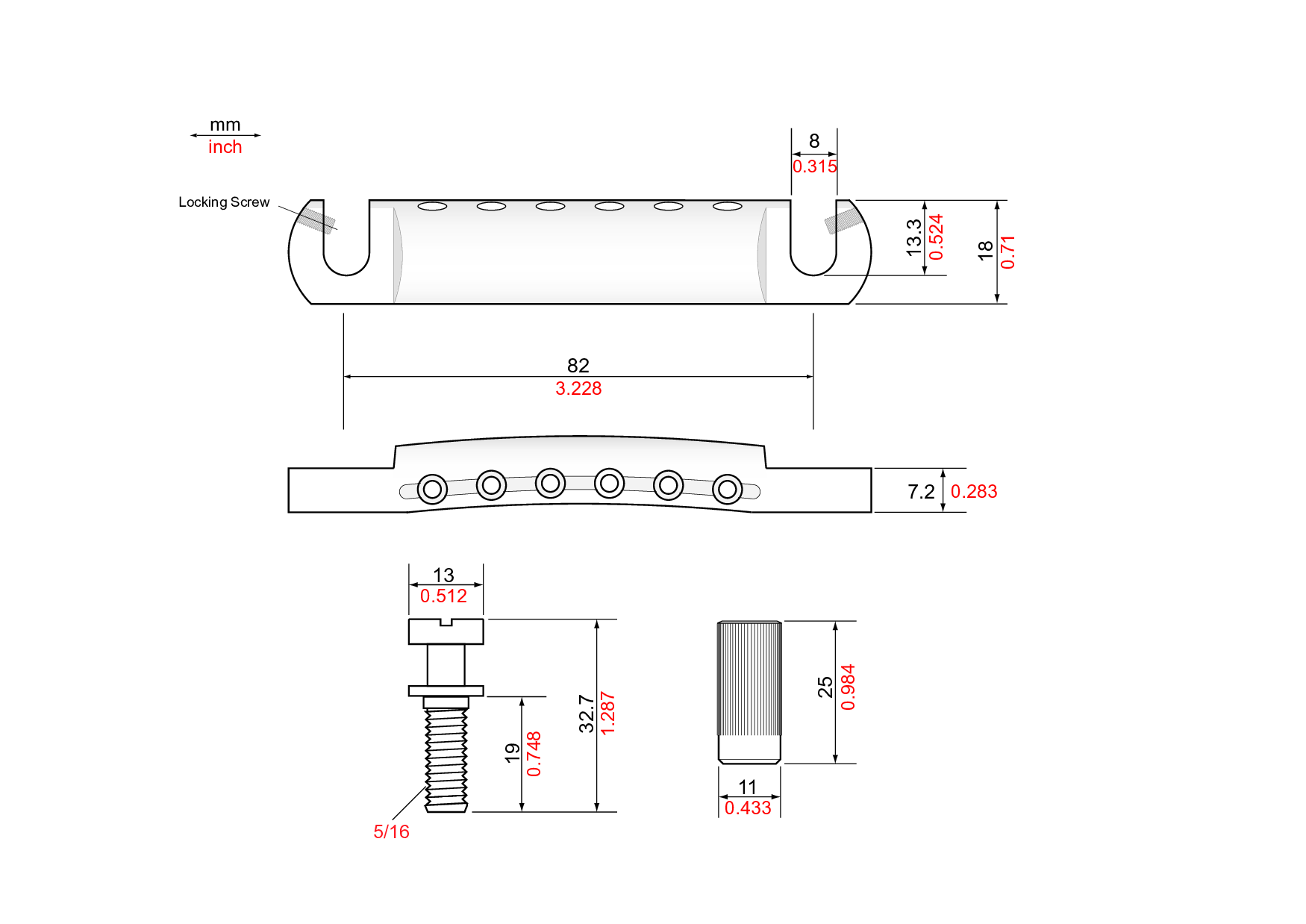

  • Tailpiece Stud Thread: 5/16 – 24 US Thread
  • Tailpiece Stud to Stud Spacing: 3.22 inches/ 82mm
  • Tailpiece Material: Zamak
  • Stud Material: Brass


***TonePros products can not be shipped outside the US or Canada. Visit to find a dealer in your country.
