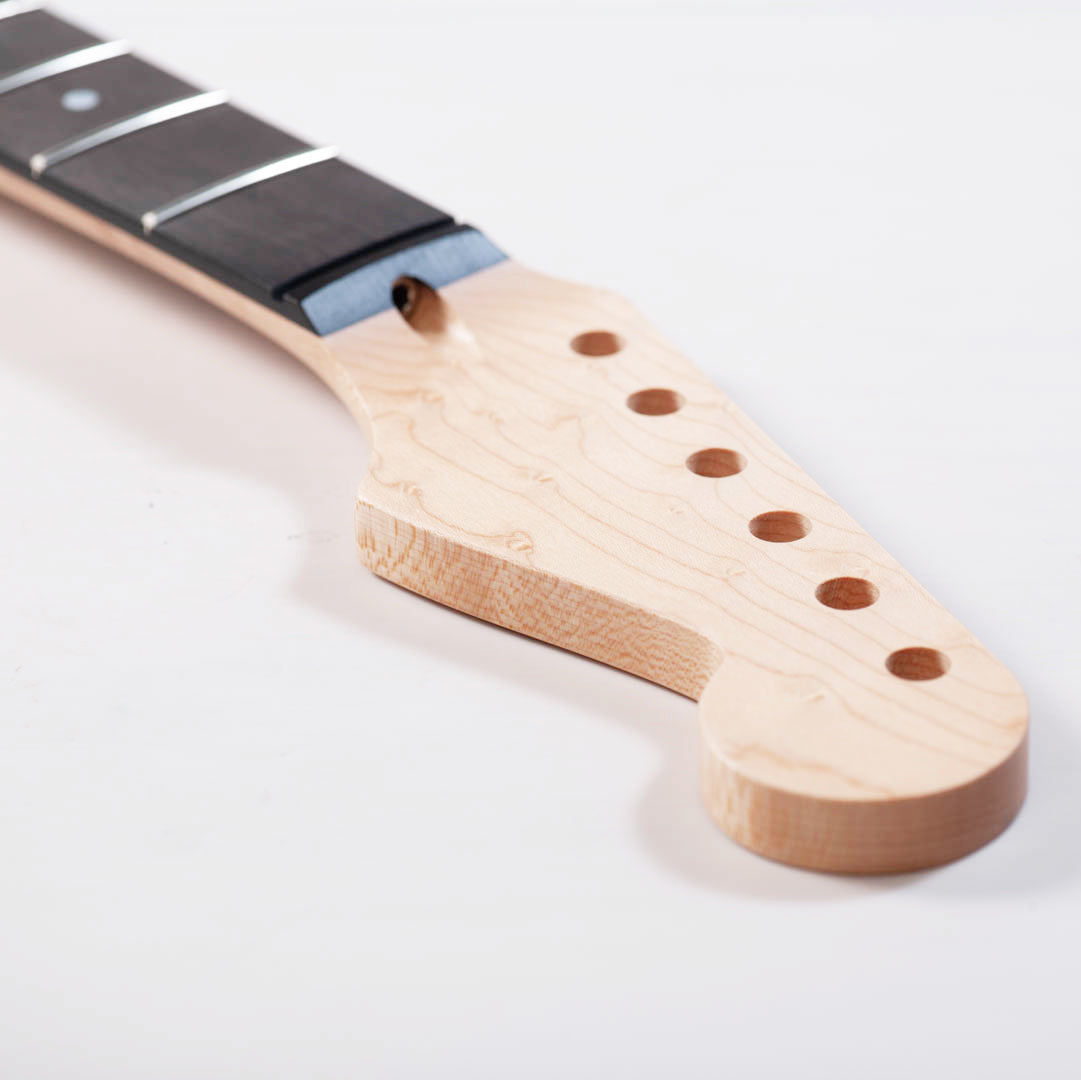

Allparts Select Bird's Eye Maple Neck Bundle for Strat

Allparts Select

Allparts “Select” guitar and bass necks represent the very best we have to offer in terms of quality, player-centric features, wood grades, and high-end appointments. Produced in limited batches using only the finest materials, our Select replacement necks offer compelling combinations of highly desirable specifications and high-end appointments.

Why Birdseye Maple and Ebony?

Birds Eye Maple refers to a unique and distinctive figuring that appears as small to medium-sized "eyes" or knots within the wood grain. This pattern is not indicative of a separate species of maple, but rather a natural abnormality, believed to be the result of dormant bud growth. The Allparts Select Exotic Birds Eye series replacement guitar necks showcase this striking wood, paired with an A-grade African Ebony fretboard. This combination not only enhances the bright tonal qualities of maple but also delivers a visually stunning contrast for an elegant, high-end aesthetic.

Model Overview

Officially licensed by Fender® and made to exacting quality standards in Japan using Birds Eye Maple and African Ebony, this Select “Ultra-Mod” series neck offers Strat® fans a compelling blend of high-end and modern specs. Engineered for performance and comfort, this Allparts Select replacement Strat neck features a sleek thin modern D profile and a wider 1-11/16” nut width—ideal for progressive players who favor the “wrist out” playing technique. With 22 jumbo frets, a flatter 10” fretboard radius, and a thin satin polyurethane finish, this neck is built for speed, fluid bends, and expressive, unconventional styles. Genuine mother-of-pearl fretboard inlays add a touch of elegance, while glow-in-the-dark side dots provide better visibility on dark stages. Whether you're building from scratch or upgrading your favorite Strat, this Allparts Select Birds Eye Maple replacement neck delivers modern playability, premium craftsmanship, and performance-driven features for today’s fast-paced players.

Features and Specifications

• Series: “ULTRA-MOD" = Contemporary and modern appointments
• Scale Length: 25.5"
• Neck Profile Shape: Modern D
• Frets: 22 Jumbo (0.114" x 0.055")
• Wood: Birds eye maple with African ebony fretboard
• Finish: Satin polyurethane
• Fretboard Radius: 10”
• Inlays: Mother of pearl fretboard dots w/ glow-in-the-dark side dots
• Nut Width: 1-11/16"
• Heel Width: 2-3/16"
• Heel Shape: Round
• Tuning Peg Holes: Modern 10mm
• Truss Rod Adjustment Location: Headstock
• Neck Thickness:
  • 0.80" at first fret
  • 0.89” at twelfth fret

True Lok:

True Lok series tuning keys were designed to deliver impeccable tuning stability.  With options available for most vintage and modern guitars, every player can upgrade their instrument for Lok-solid performance!

Mini 6-In-Line Locking

Designed for stability, accuracy and rigidity, our True Lok Mini 6-in-line locking tuning keys feature an 18:1 gear ratio, allowing for more precise tuning and an easy-to-use lock wheel on the back of the key that locks the string into place, offering better tuning stability as well as making string changes quick and easy.  Made to be direct replacement tuners for most modern 6-in line keys using a single diagonal screw tab, these keys offer a sleek, modern look that would complement any headstock and the smaller mini housing keeps the weight of your headstock down, helping to keep your guitar from becoming neck heavy!

Features:

• Locking key with lock wheel on back of housing
• Orientation: 6-in-line
• Housing Size: Mini
• Gear Ratio: 18:1
• String Post: Zinc
• Worm Gear: Steel
• Gear: Brass
• Key Housing: High density die-cast zinc
• Button Style: Metal square-style
• Post Diameter: 6mm (requires 10mm hole for screw-in bushing)
• Tension washer added to base of string post prevents "post wiggle" for better sustain and more stable tuning
• Nylon washers and steel button shaft ensure smooth feel
• Single diagonal screw tab.
• Hardware Included: 6 screw-in bushings, 6 dress washers, 6 screws

Allparts String Guides for Guitar

String guides (2) wavy style, with screws and spacers for guitar.

Allparts Standard Neckplate

Neck plate, 4 hole, for guitar or bass. Comes with 4 Neck Plate Screws

Special Notes

• Wood grain varies from neck to neck.  Your neck may differ slightly from what is pictured.
• All necks have a limited lifetime warranty against defects in materials and workmanship.
• All necks may require fret leveling and polish. This is normal and not a defect.
• To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
• This neck is licensed to Allparts Music Corporation by Fender ® Musical Instruments under a quality control trademark license. Allparts Music Corporation is not affiliated with Fender® and no Fender® warranty applies.
