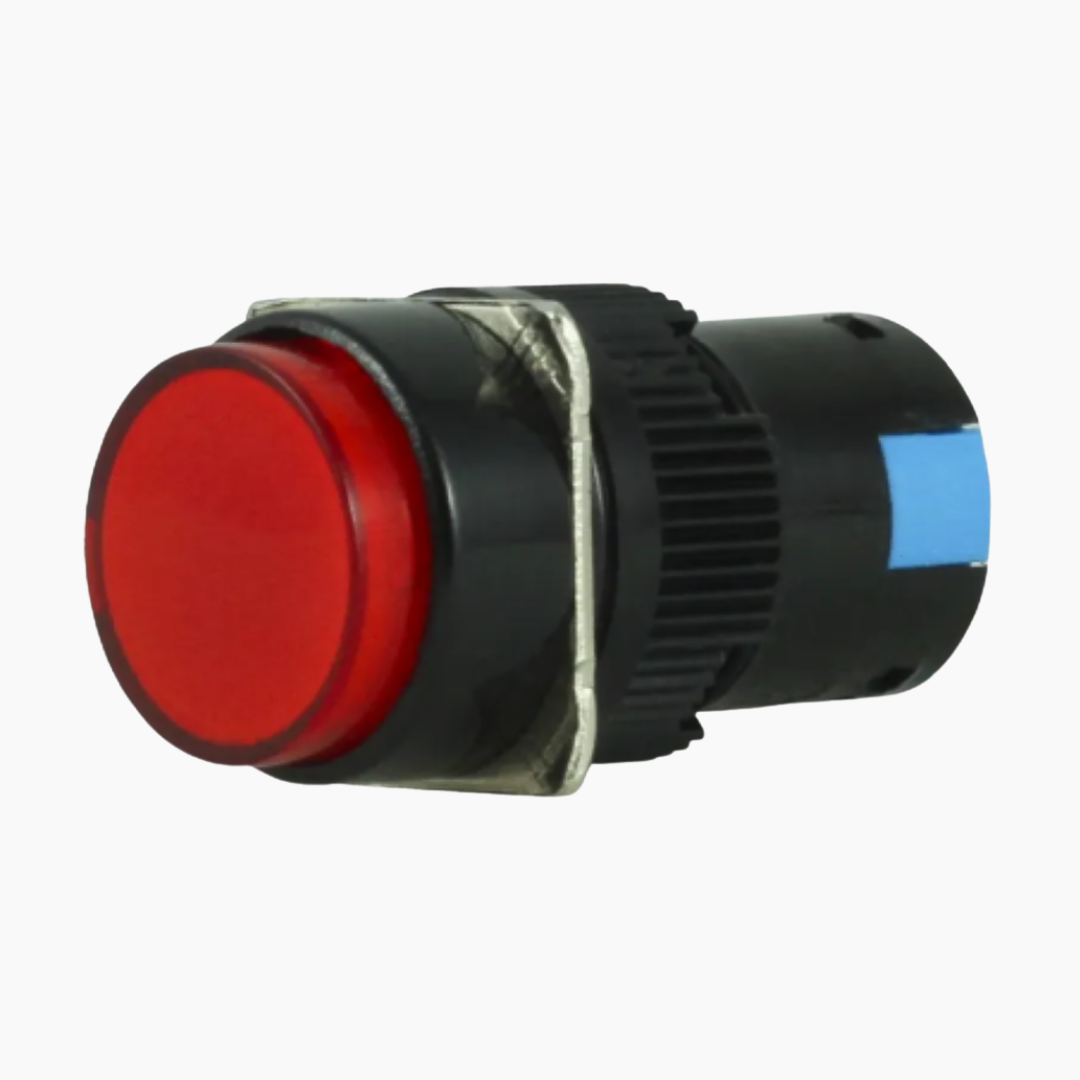

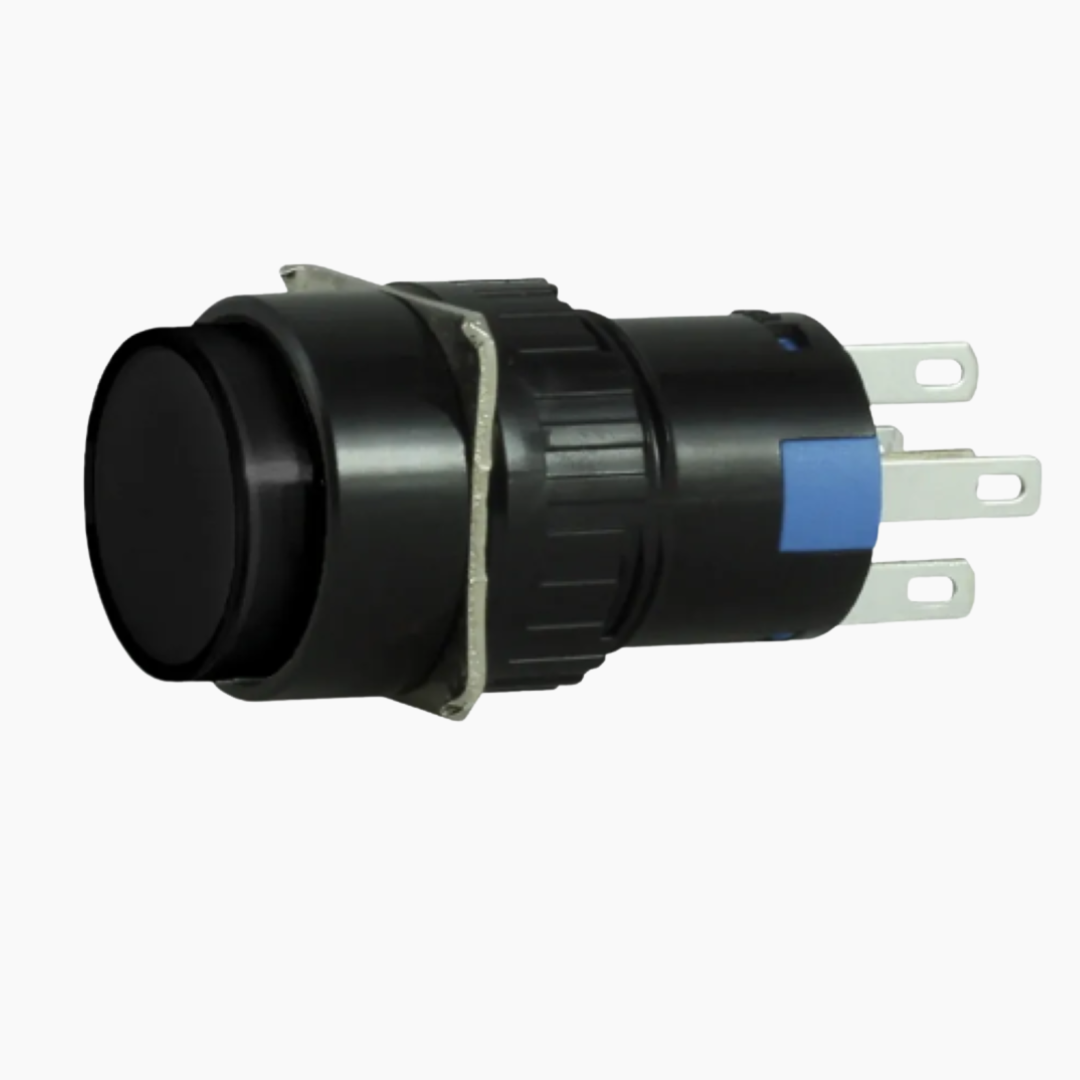

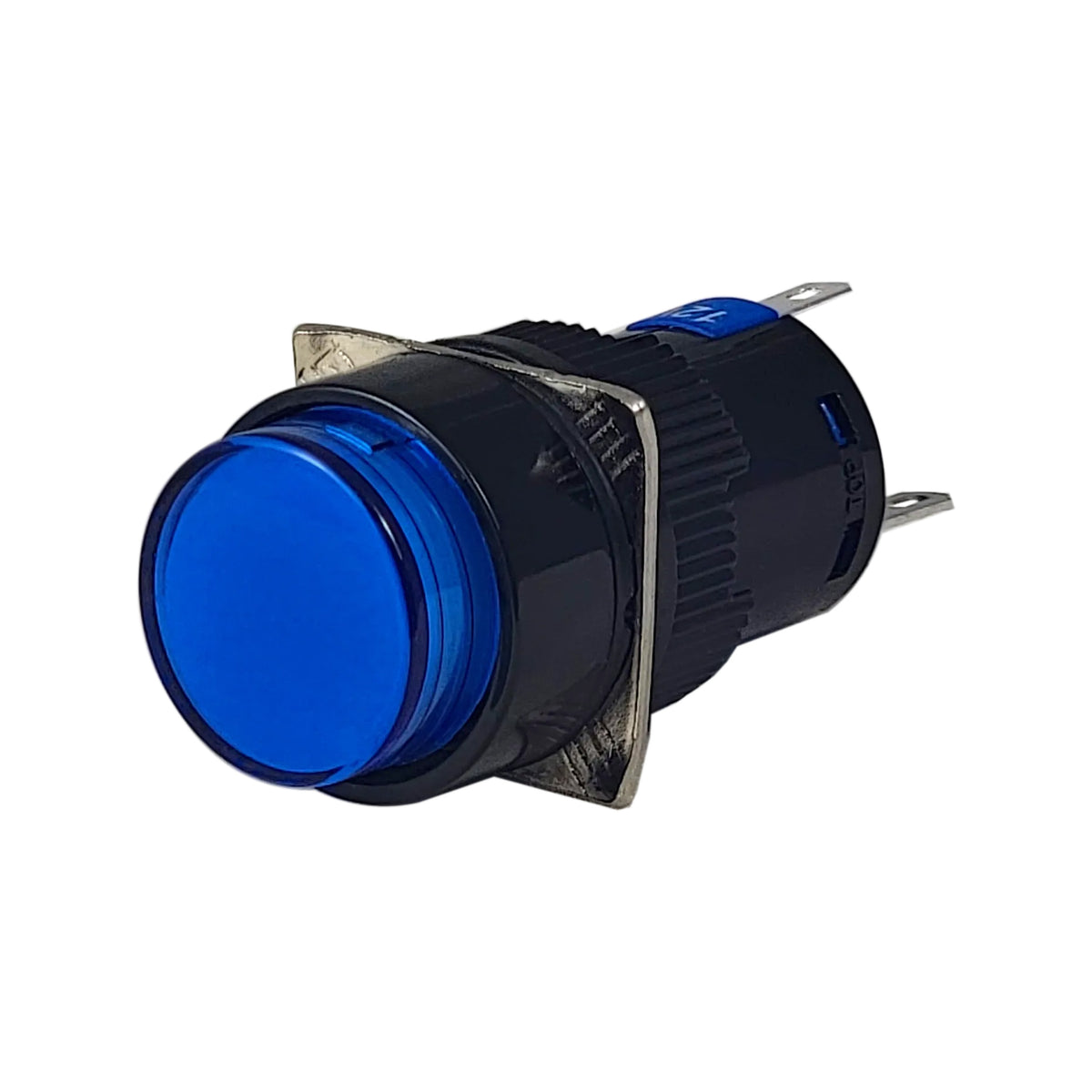

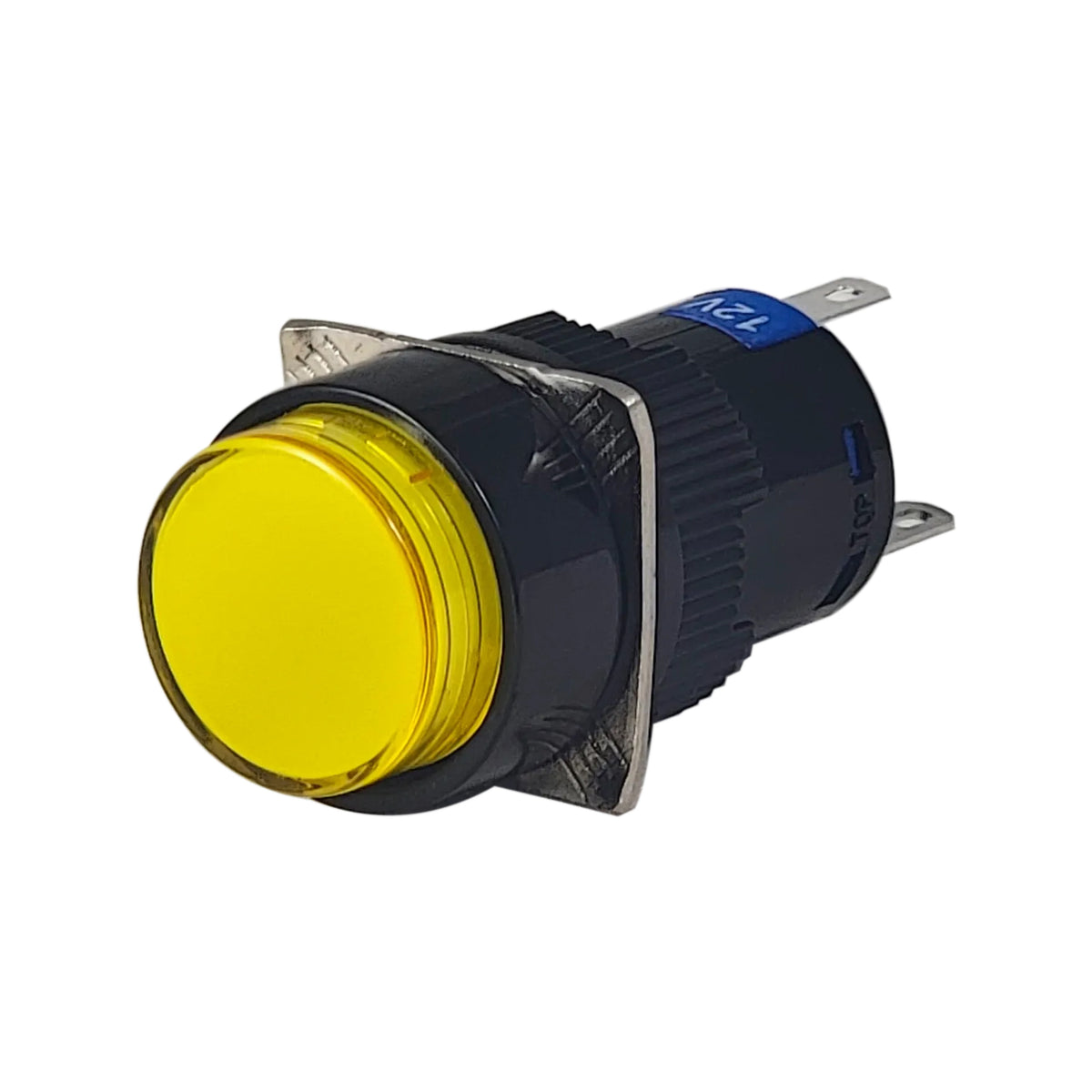

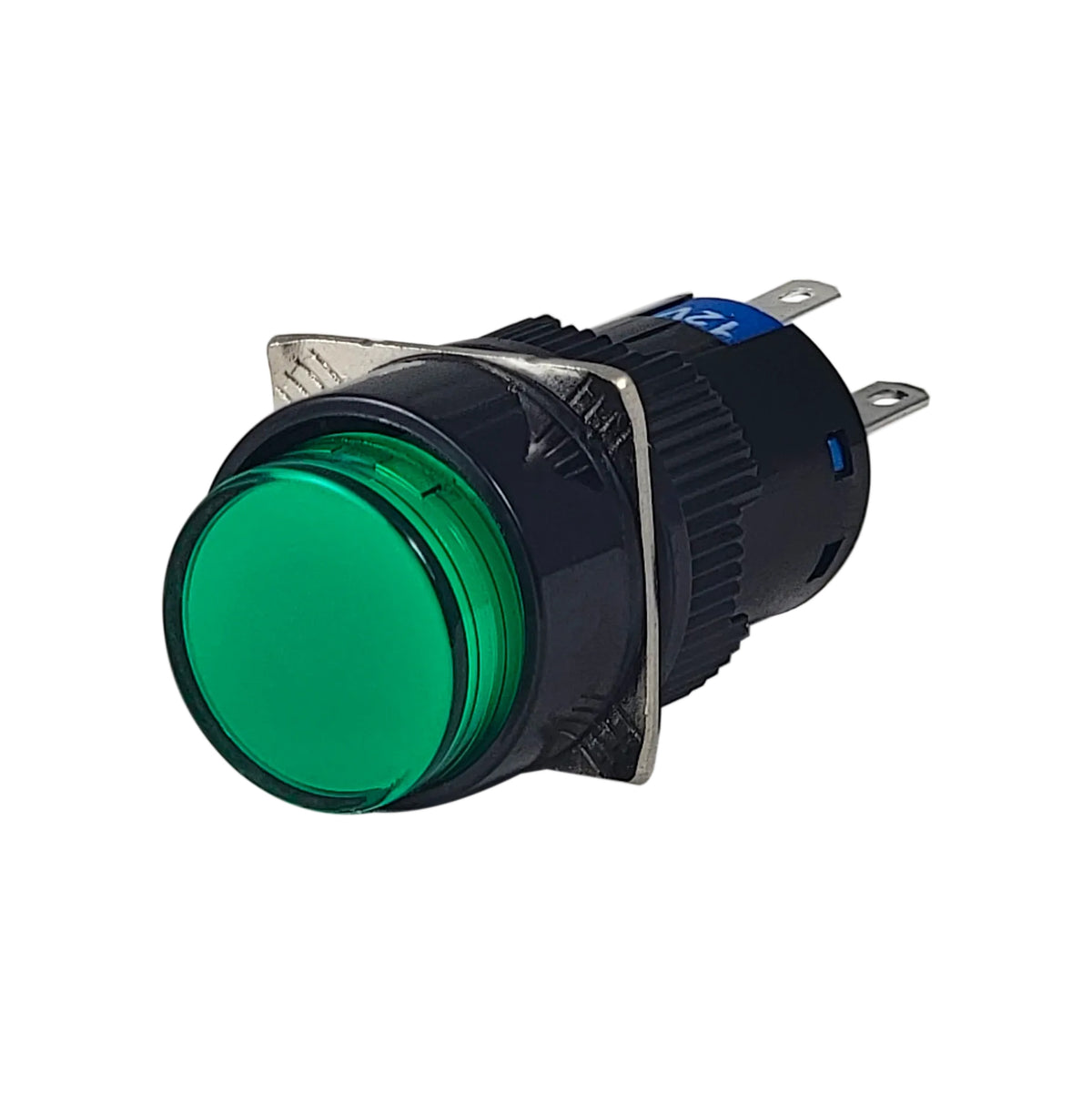

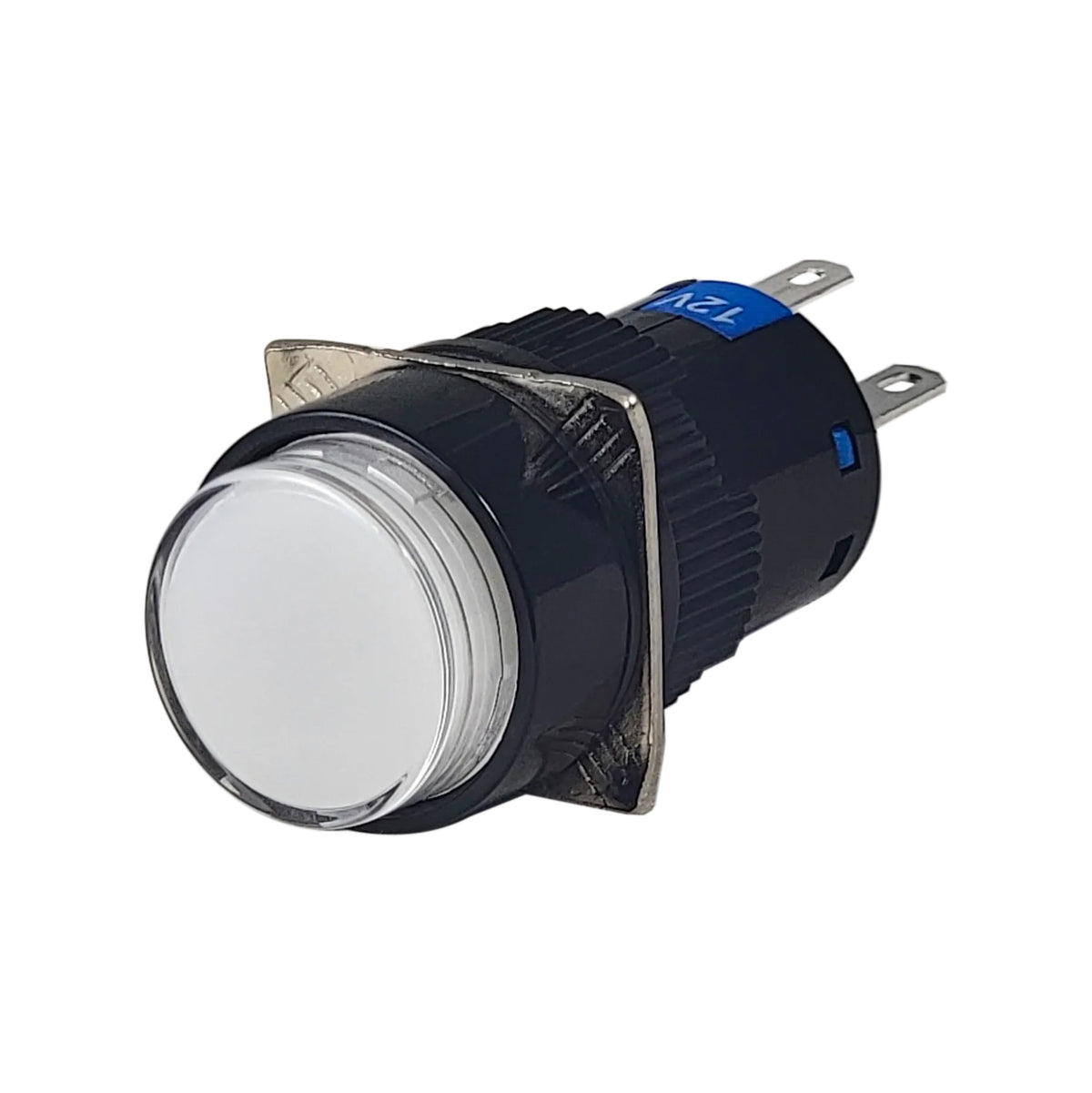

TESI SWITCH EVH Style Momentary Kill Switch

Availability: In stock
SKU: EP-4927-023
Regular price $16.99
Regular price Sale price $16.99
Shipping calculated at checkout.

Specs:

  • Type: Momentary Push Button Switch
  • Operation Type: Normally Open
  • Housing Material: Plastic
  • Mounting hole Size: 16mm
  • Mounting Panel Thickness: 1mm-6mm
  • Operation Pressure: about 5n
  • Operation Stroke: about 3mm
  • LED Rated Voltage:  6V (includes wires to use with 9V battery and additional resistors in case you want to get creative with the wiring)
  • LED Life: About 40,000 hours
  • LED Power Draw: 15mA
  • Contact Resistance: <50 mOhm
  • Mechanical Life: 1,000,000 cycles
  • Switch Rating: 3A/36VDC

What does all this mean?  You're getting a tough switch that will last a long time in your instrument and will look good doing it!

The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself. If you do not have that skill, you should have a guitar repair person do it.   If you need assistance with installation check out one of our Allparts Premium Installation Partners.

This package comes with everything:

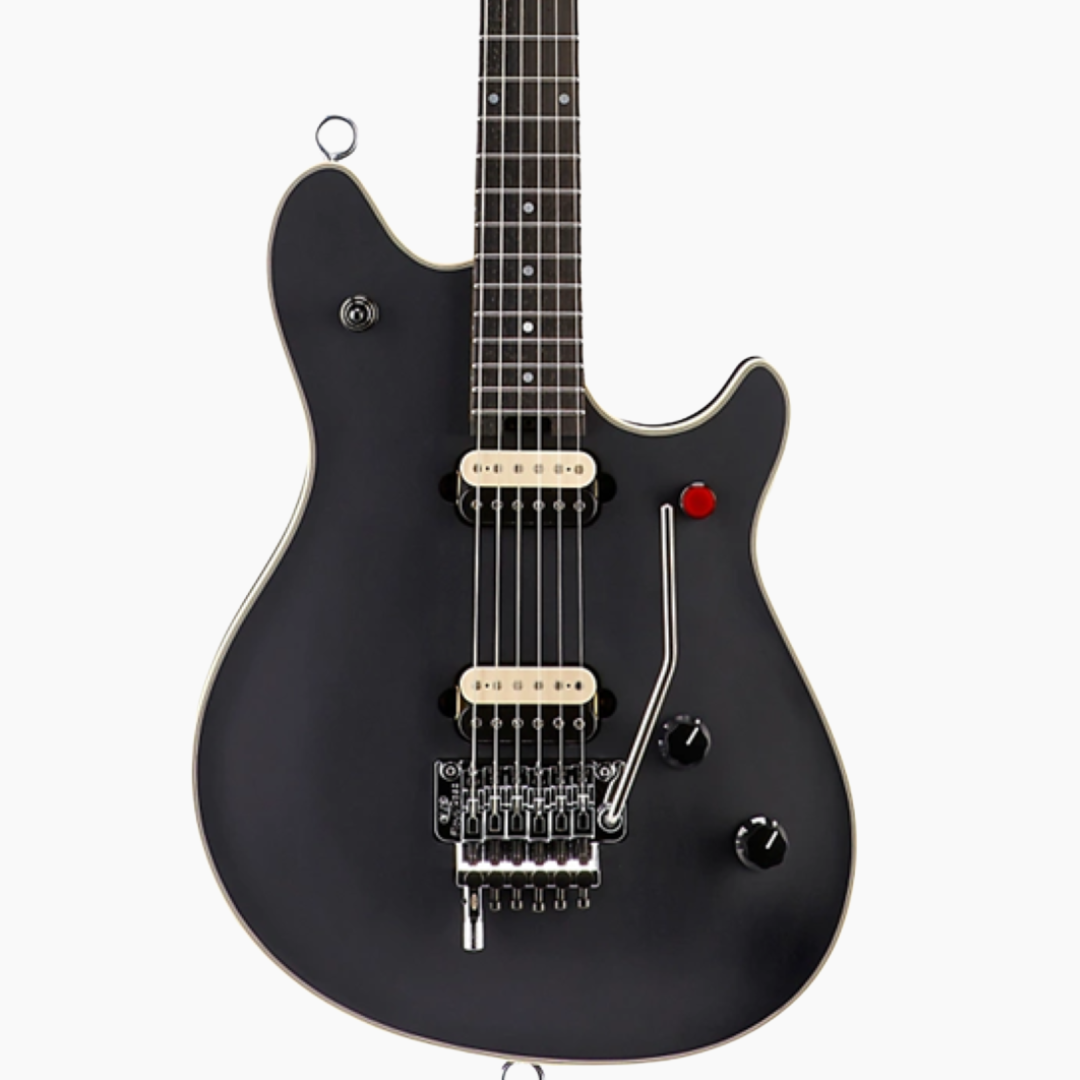

(1) Tesi NELLI 16mm Momentary Guitar Kill Switch - This is the size used on the Wolfgang Tour Guitar.

(1) Tesi Quick-Connect wiring Bundle that includes:

  • (1) Black/Black ground wire
  • (1) Black/White hot wire
  • (1) 9V Battery Harness with 330 Ohm resistor
  • (1) On/Off Rocker Switch

When used with active pickups and/or a stereo output jack (not included) the Tesi NELLI does not require the included on/off rocker switch.  Allparts recommends using stereo jack EP-0155-000 or EP-0152-000 for active installation applications.
