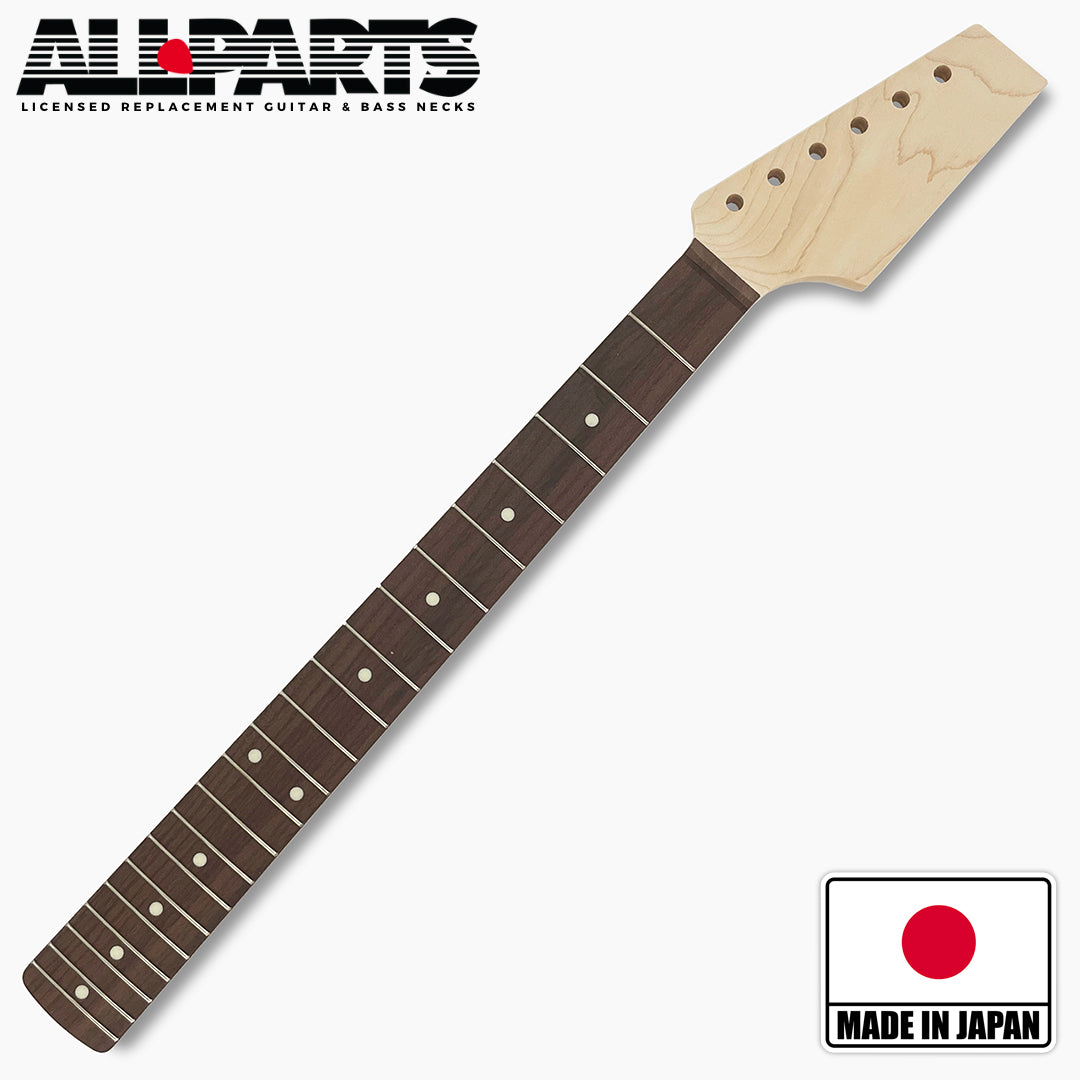

PHR-S1C HALF PADDLE HEAD ROUNDED HEEL NECK ROSEWOOD FB

SKU PHR-S1C
$292.00

Equipped with a rosewood fretboard, the PHR-S1C neck offers all of the subtle, yet modern benefits you're looking for with a more customizable headstock!  With its comfortable C-shape profile, vintage tall frets and flatter 10" fretboard radius, the PHR-S1C will have you chording and bending notes effortlessly!  Predrilled for vintage 6 in-line tuners, this neck takes out off of the guess work when installing tuners!  The PHR-S1C comes with a "round" heel and will retrofit onto most Stratocaster® neck pockets.

Specifications

  • Scale Length: 25.5
  • Neck Profile Shape: C
  • Frets: 21 Tall (0.079" x 0.055")
  • Wood: Maple with rosewood fretboard
  • Finish: None/Unfinished
  • Fretboard Radius:  10"
  • Inlays: White fretboard and side marker dots
  • Nut Width: 1-5/8"
  • Heel Width: 2-3/16"
  • Heel Shape: Round
  • Tuning Peg Holes: Vintage 2-step hole
    • 0.34" (8.5mm) bushing-hole diameter
    • 0.25" (6.5mm) post-hole diameter
  • Truss Rod Adjustment Location: Heel
  • Neck Thickness:
    • 0.86" at first fret
    • 0.96" at twelfth fret

Important Notes

  • Wood grain varies from neck to neck. Your neck may differ slightly from what is pictured.
  • Allparts necks have a limited lifetime warranty against defects in materials and workmanship.
  • All necks may require fret leveling and polish. This is normal and not a defect.
  • To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
