TP-3772-001 Nickel Bigsby® V7-335 G Vibramate® for Gibson® ES-335®
Now you can install a Bigsby B7 Vibrato on your arch top guitar without drilling any holes! The Vibramate V7-335 Model Mounting Kit is designed for a Bigsby B7 Original Vibrato and will fit most Standard 335 Sized Arch Top guitars with Stop Tailpiece and Tune-O-Matic Bridge.
Choose from 2 sizes available depending on your specific guitar; 8.0" E-Series or 8.5" G-Series.
The kit installs in minutes with the included hardware and eliminates the need for drilling holes in your instrument.

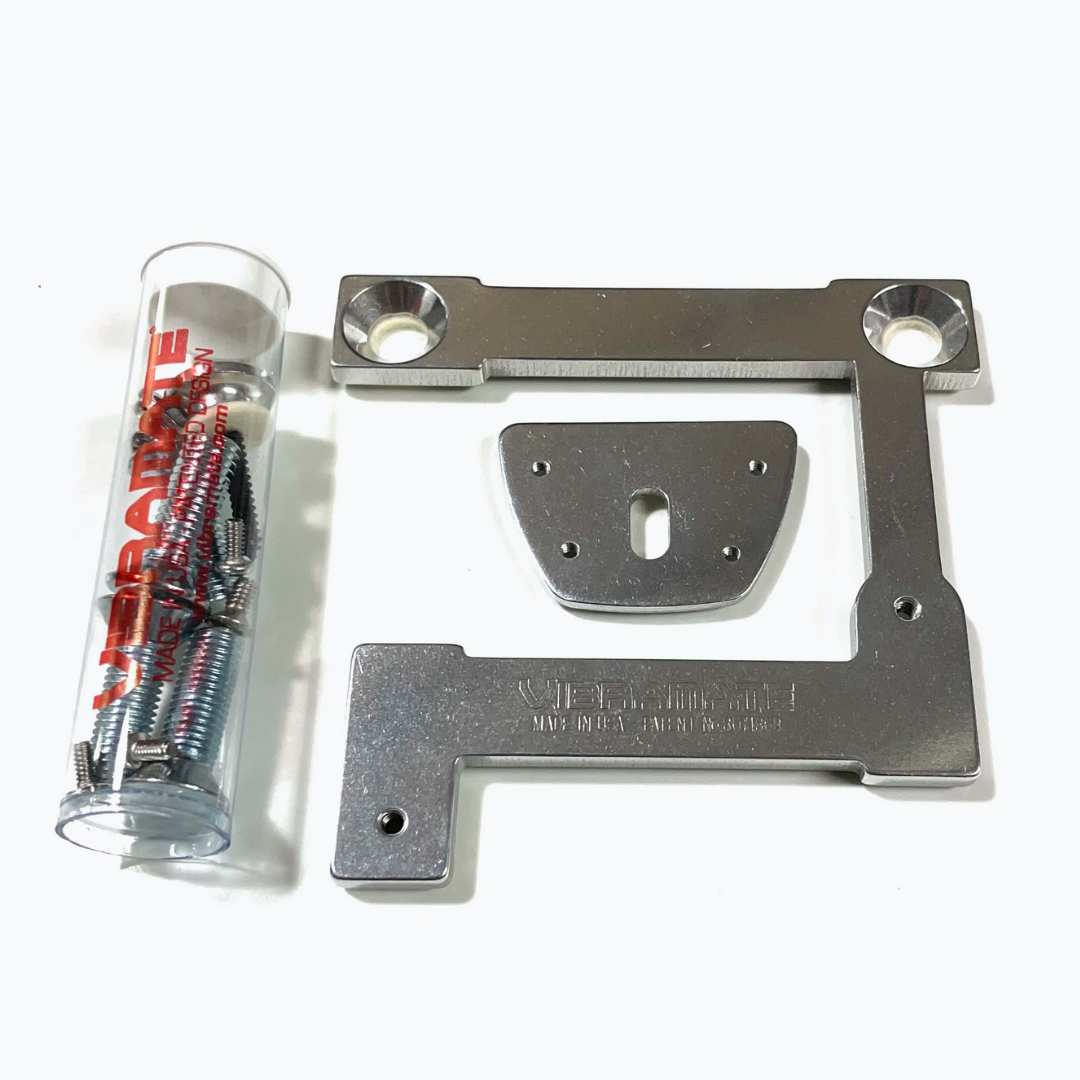

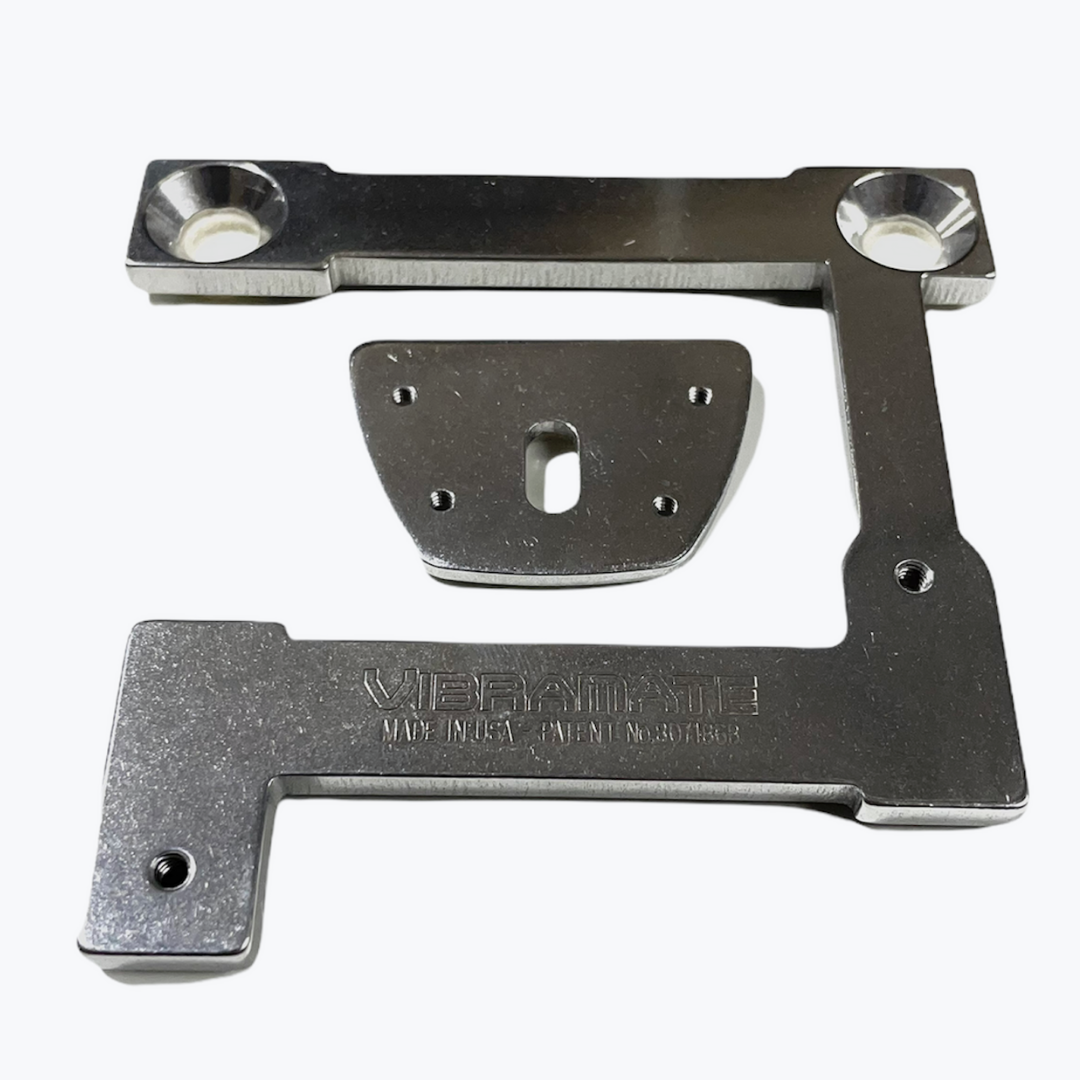

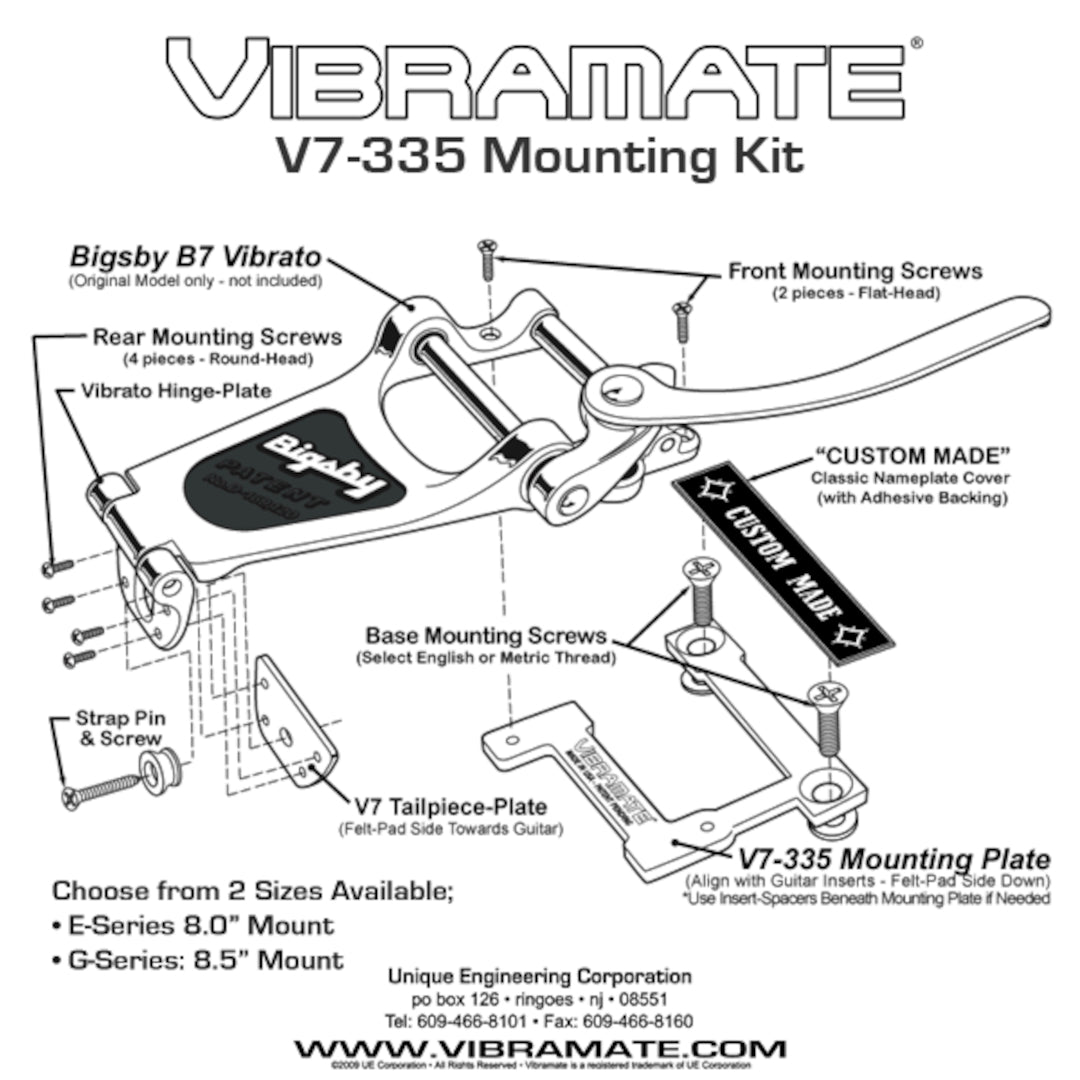

Vibramate V7-335 Kit includes the Vibramate V7 mounting plate with felt-pads on the bottom for a soft touch to the top of your guitar.
The Vibramate V7-335 kit includes our felt-padded Tailpiece Plate for mounting the Hinge-Plate of the Bigsby B7 to the Strap Pin hole at the lower end of your guitar.
The Vibramate V7-335 kit also includes a "CUSTOM MADE" nameplate cover with adhesive backing that completes the kits classic installation appearance.
Vibramate automatically positions the Bigsby Vibrato in the proper orientation and makes a very clean finished appearance with great performance.

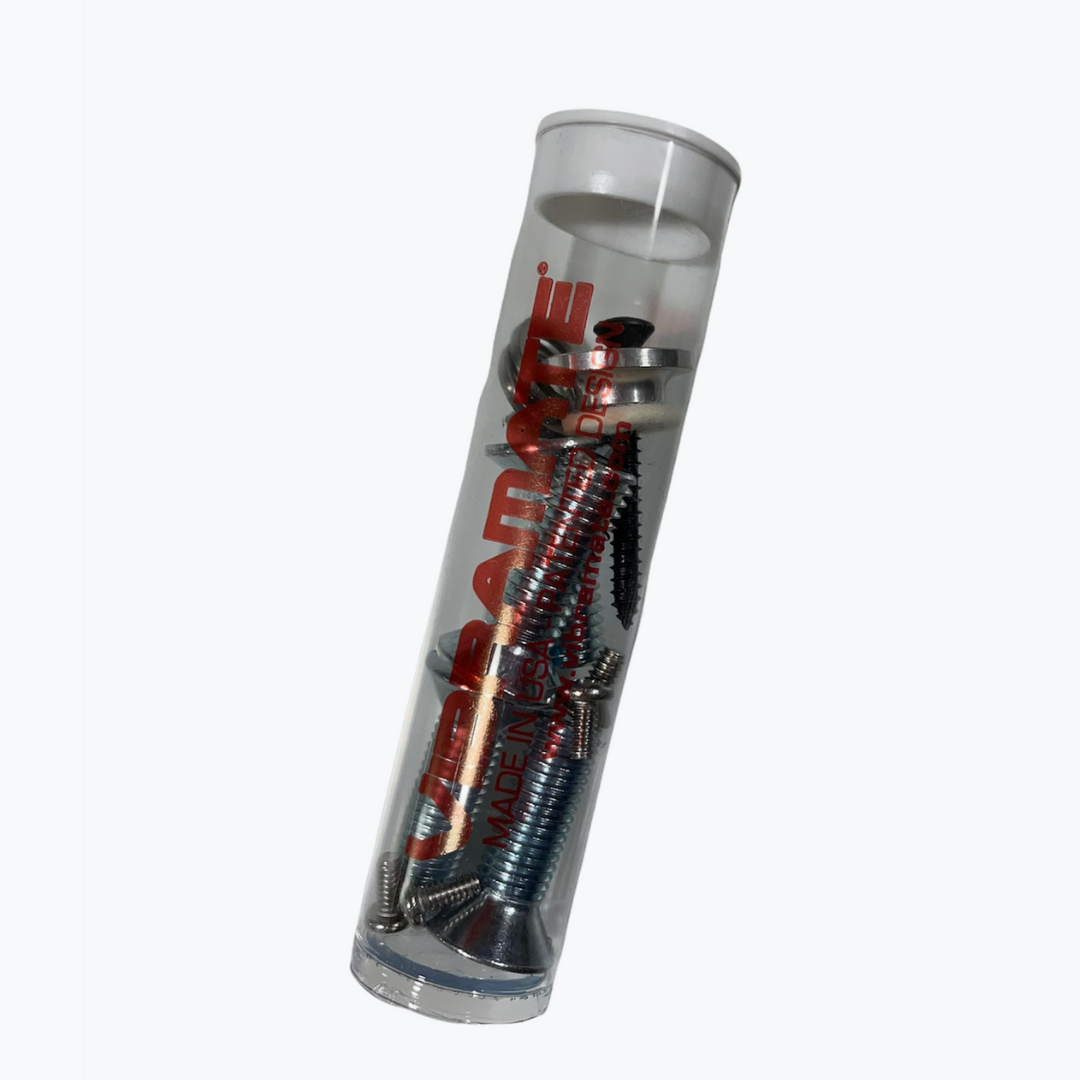

The Vibramate Quick Mount Kit includes both English and Metric threaded mounting hardware for either US or Import model guitars.
